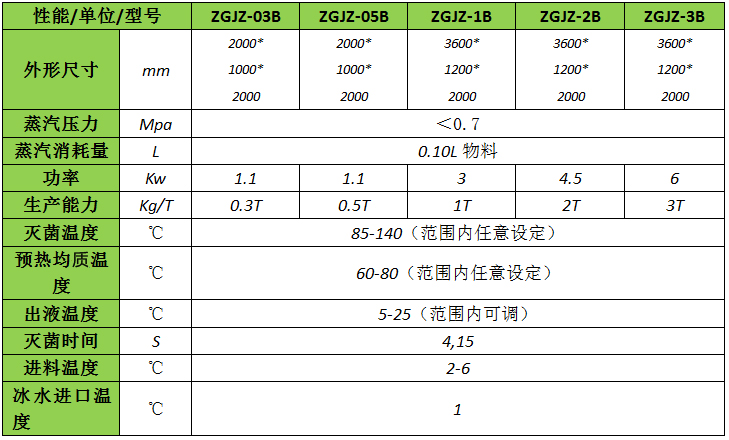

該機組加熱方式分為蒸汽加熱和電加熱兩種選擇，廣泛適用于保質期長的純牛奶、鮮牛奶、豆奶花色奶、乳飲料、巴氏奶、酸奶、各種果汁飲料、醬油(醋)、葡萄酒、啤酒、藥用積液的巴氏殺菌、超巴氏殺菌、UHT超高溫殺菌。
●具有自消毒程序、生產程序、CIP清洗程序的全過程控制運行及監控，基本實現無人值守
●全部采用進口PLC程序控制器、觸摸屏人機界面、施耐德電氣 原件、斯派莎克蒸汽閥組、衛生級氣動(電磁)閥組
●具有均質功能
●預殺菌功能
●CIP清洗功能
●管道消毒功能
●具有冰水(冷水)冷卻功能
●機組與灌裝機直連和控制系統相互通訊功能
●滿足多產品、多工藝參數、多生產能力的轉換和不同的滅菌溫度要求

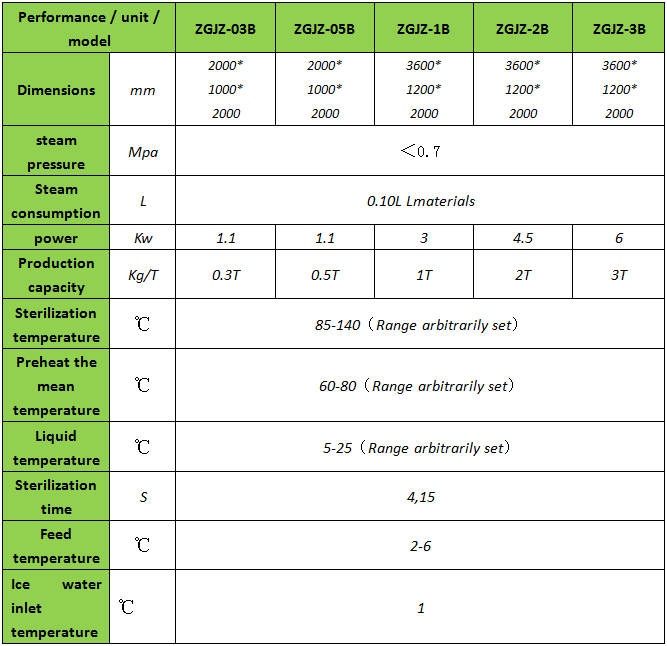

The unit is a sterilization equipment that provides heat from the steam. It is widely used in pure milk with long shelf life, fresh milk, soy milk, milk paste, milk paste sterilization, UHT ultra-high temperature sterilization.
●With the self-disinfection procedures, production procedures, CIP cleaning procedures for the whole process of control operation and monitoring, the basic realization of unattended
●all imported PLC program controller, touch screen man-machine interface, Schneider Electric original, Spirax Sarco steam valve group, Hygienic pneumatic (electromagnetic) valve group
● with homogeneous function
●pre-sterilization function
●CIP cleaning function
●pipeline disinfection
●with ice water (cold water) cooling function
●unit and filling machine direct connection and control system communication function
●Meet multi-product, multi-process parameters, multi-production capacity conversion and different sterilization temperature requirements
|
